4LGZ-302(G4) Gourd Melon Picking Machine
Update time:2025-02-28

Product Introduction
Technical Parameters

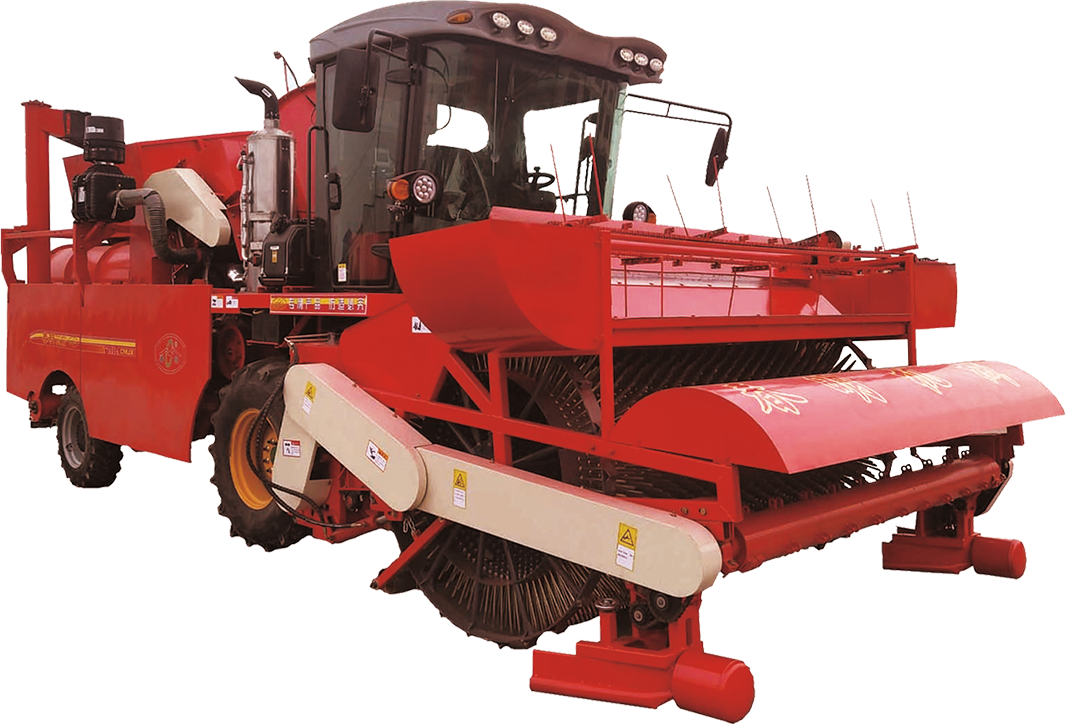

Self-propelled gourd melon seed harvester


Chunming brand series melon-picking machines can complete the whole process of harvesting, picking, removing debris, conveying, cutting, crushing, threshing, pulping, seed lifting and packing of gourds, melons, seed melons and other melon and fruit crops at one time . The grain harvesting is efficient and convenient, the operation is simple, and the repair is convenient and easy to maintain, which has great market promotion and application value.

Product structure characteristics description

It is equipped with a famous domestic National IV diesel engine, which is powerful, energy-saving and environmentally friendly, with low fuel consumption and advanced performance indicators . The chassis uses a special drive axle for harvesters , and is combined with a high-quality and advanced mechanical 3- speed + continuously variable transmission gearbox, which is reliable in quality, low in center of gravity, good in stability and high in safety factor . The vines are beaten with rubber strips on the beating shaft, and the melons are picked by the rotating melon-picking rollers. The melons are picked cleanly and thoroughly with low power loss . The threshing and cleaning device adopts melon cutting, seed skin separation and scraper -type cleaning structure, which reduces the seed breakage rate and cleans thoroughly . The horizontal spiral cage is used to transport and lift seeds into the seed collecting bin, which adopts side-flip hydraulic unloading, which is convenient and quick to operate and improves harvesting efficiency. Industry ; equipped with a luxurious cab, air conditioning, reversing and seed bin image display screens, the driver can observe the reversing environment and the seeds in the seed bin at any time, which effectively reduces the driver's labor intensity and makes harvesting safer; the whole vehicle is equipped with four sets of weeding devices and an independently developed anti-winding system, which can reduce the impact of gourd seedlings and weeds on harvesting operations, thereby ensuring the quality of seed harvesting; the series of melon pickers are equipped with an independently developed stone prevention device, which makes stone removal simple and convenient, and avoids damage to mechanical parts caused by stones; equipped with an independently developed suspended melon divider device, it can be harvested anytime and anywhere without being restricted by the morning and evening working hours.

Main technical parameters

projectunitTechnical Specifications
Model Specifications/4LGZ-302(G4)
Structural type/Self-propelled
Supporting powerbrand/Weichai
powerkW177 (240 hp)
Overall dimensions (length x width x height)mm9260×3200×3650
Construction Qualitykg11160
Width of harvesting tablemm3020
Pick-up mechanism type/Zagua Style
Pick-up mechanism widthmm2510
Threshing drum type/Double drum + longitudinal flow
Drive mode/Four-wheel drive
Operating hour productivity (pure work)hm2/h0.35~0.70






Main technical parameters


projectunitTechnical Specifications
Model Name/4MZJ-320 Self-propelled cotton picking harvester4MZJ-450 Self-propelled cotton picking harvester
Structural type/Self-propelledSelf-propelled
Supporting powerbrand/Full FirewoodFull Firewood
powerkW162 (220 hp)162 (220 hp)
Overall dimensions (length x width x height)mm10900×3450×365010200×4850×3650
Construction Qualitykg1060011600
Working widthmm32004500
Feeding method/Spring tooth pickup + fan suctionSpring tooth pickup + fan suction
Fan type/CentrifugalCentrifugal
Discharging method/HydraulicHydraulic
Speed change mechanism type/Mechanical 3 gears + continuously variable speedMechanical 3 gears + continuously variable speed
