Self-propelled pepper harvester
Update time:2025-02-28

Product Introduction
Technical Parameters

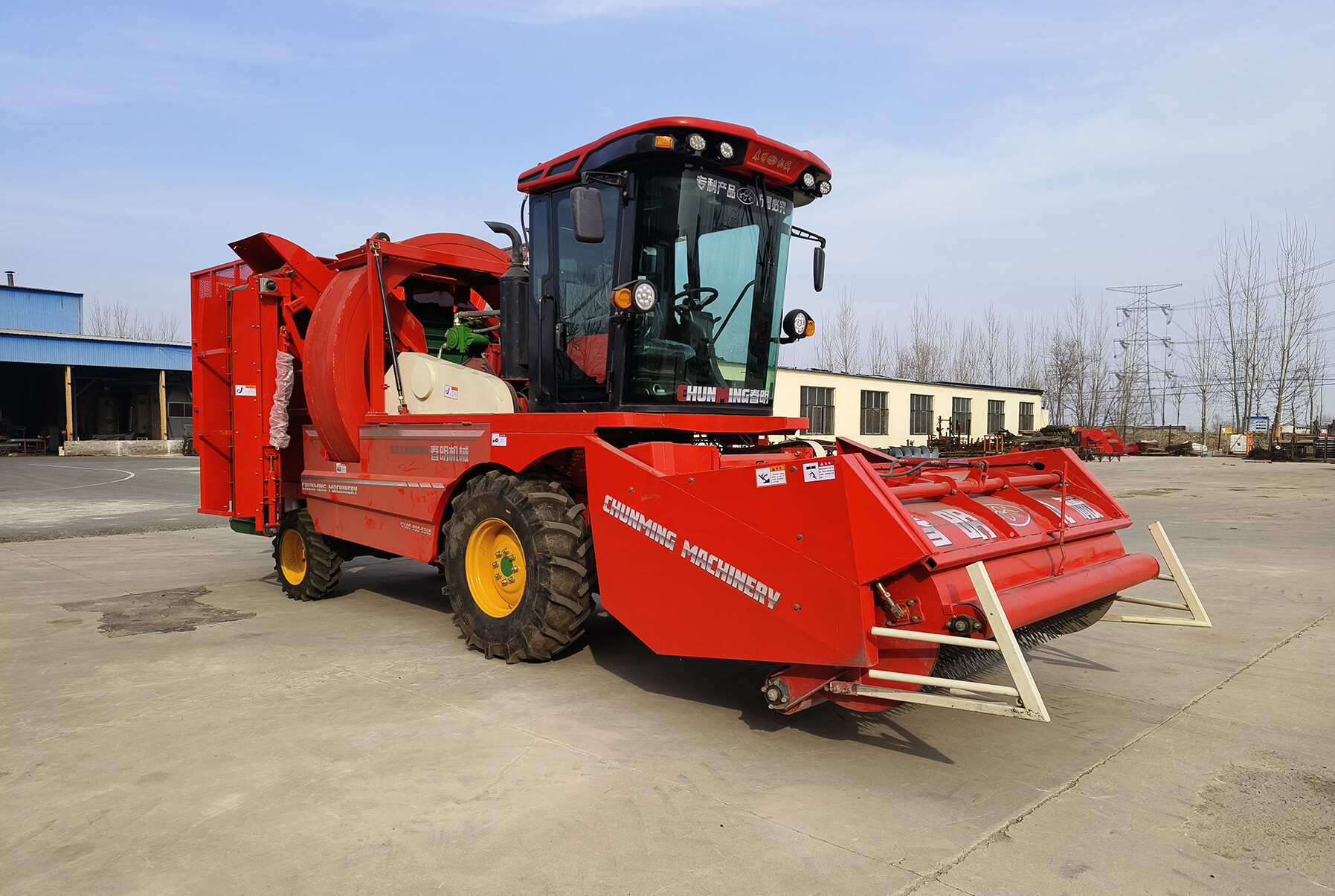

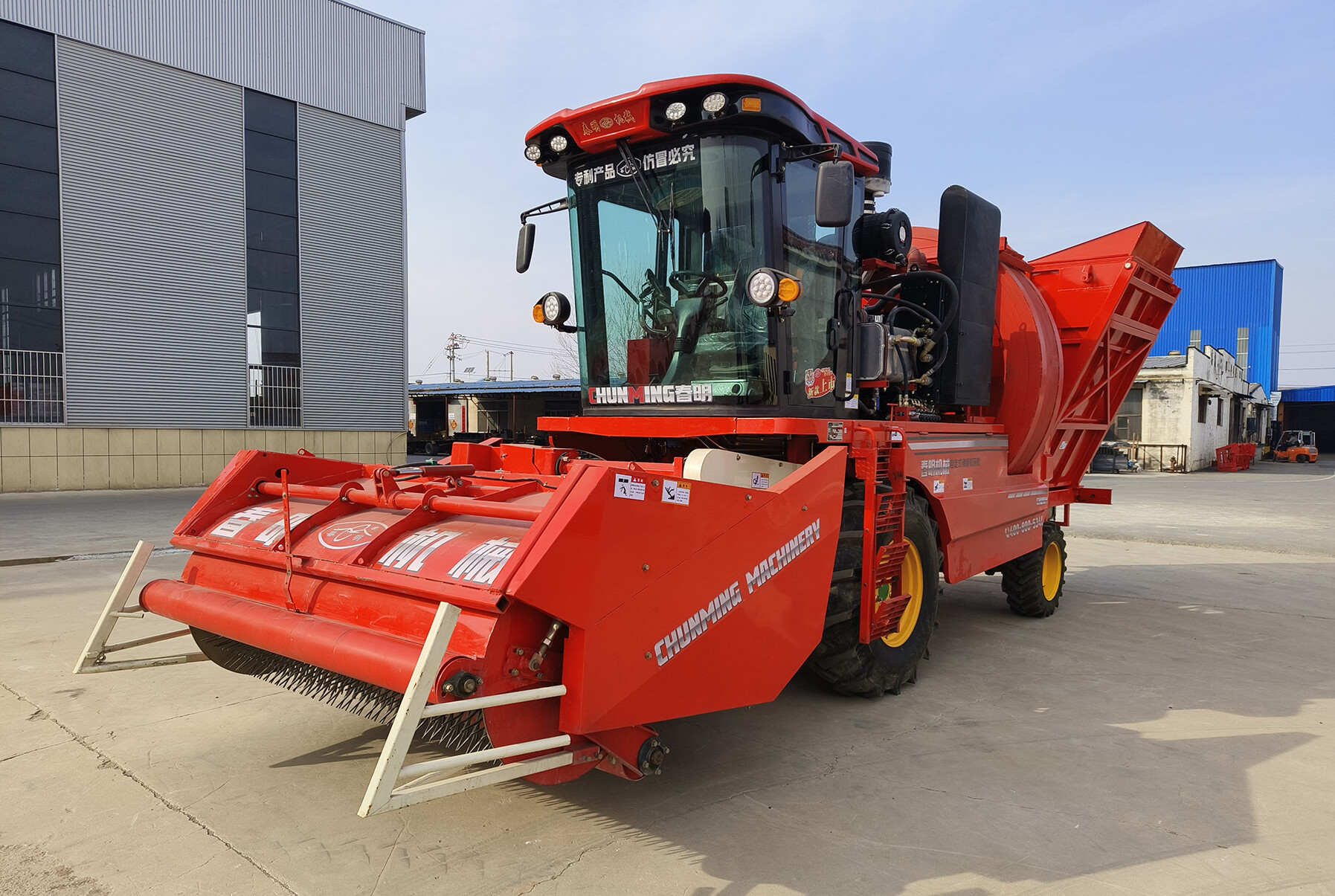

Self-propelled pepper harvester


Chunming brand series pepper harvesters are new agricultural machinery products independently developed on the basis of absorbing advanced pepper harvester technologies at home and abroad and after years of trial production and improved design.

This product is mainly suitable for the mechanized harvesting of peppers (especially pigmented peppers except string peppers and iron plate peppers ). It can complete the harvesting operations of peppers such as picking, conveying, cleaning, and collecting (or transporting on the vehicle) at one time.

Product structure characteristics :

The machine is equipped with a famous domestic six-cylinder National IV diesel engine, which is powerful, energy-saving and environmentally friendly, with low fuel consumption and advanced performance indicators; the chassis walking adopts a double-beam integral bridge frame design, combined with high-quality and advanced mechanical 3-speed + hydrostatic continuously variable transmission drive axle box, which is reliable in quality, low in center of gravity, good in stability and high in safety factor; it adopts a nylon spring-tooth picking mechanism, which picks cleanly and thoroughly, with a small breakage rate, low impurity rate and high operating efficiency; the bearing adopts a fully sealed dustproof design, and the standard parts are made of special steel grades, so that the machine can adapt to working in harsh environments; the large-volume collection box design can reduce the number of unloading times and improve work efficiency; the hydraulic side-turning unloading is simple to operate and convenient to unload; the vehicle-mounted conveying structure design is efficient and fast in vehicle-mounted conveying and has strong operating adaptability. This product is ingeniously conceived , simple to operate , convenient to repair and maintain, high in harvesting efficiency, good in operating effect, and has a good market promotion and application value.


Main technical parameters


projectunitTechnical Specifications
Model Name/4JZ-3.5 Self-propelled Pepper Harvester4JZ-4.2 Self-propelled Pepper Harvester
Structural type/Self-propelledSelf-propelled
Supporting powerbrand/Full FirewoodFull Firewood
powerkW176.5 (240 hp)176.5 (240 hp)
Overall dimensions (length x width x height)mm9900×3950×37509900×4550×3750
Construction Qualitykg960010600
Working widthmm35004200
Pepper picking mechanism type/Roller comb typeRoller comb type
Pepper elevator structure/Conveyor beltConveyor belt
Speed Shift/Mechanical 3 gears + continuously variable speedMechanical 3 gears + continuously variable speed
Pepper removal method/Hydraulic rollover/vehicle-mounted conveyorHydraulic rollover/vehicle-mounted conveyor






Main technical parameters


projectunitTechnical Specifications
Model Name/4MZJ-320 Self-propelled cotton picking harvester4MZJ-450 Self-propelled cotton picking harvester
Structural type/Self-propelledSelf-propelled
Supporting powerbrand/Full FirewoodFull Firewood
powerkW162 (220 hp)162 (220 hp)
Overall dimensions (length x width x height)mm10900×3450×365010200×4850×3650
Construction Qualitykg1060011600
Working widthmm32004500
Feeding method/Spring tooth pickup + fan suctionSpring tooth pickup + fan suction
Fan type/CentrifugalCentrifugal
Discharging method/HydraulicHydraulic
Speed change mechanism type/Mechanical 3 gears + continuously variable speedMechanical 3 gears + continuously variable speed
