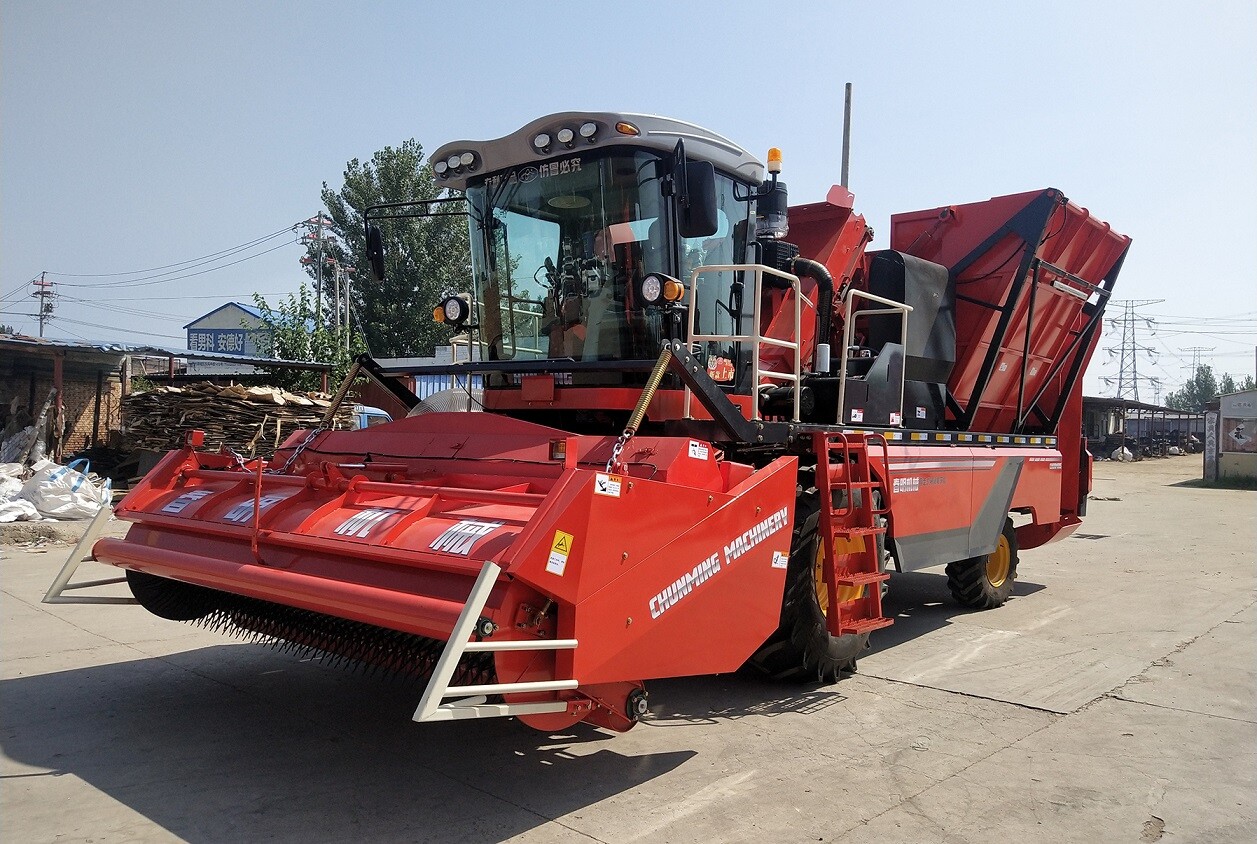

4JZ-3.5(G4) Self-propelled Pepper Harvester
Update time:2025-02-26

Product Introduction
Technical Parameters

Self-Propelled Chili Harvester


Chunming Series chili harvester is developed through years of experimentation and improvement, based on advanced domestic and international chili harvesting technologies. This product is primarily designed for mechanized harvesting of chili peppers (especially pigment-rich varieties excluding fresh peppers and iron plate peppers), capable of completing picking, conveying, cleaning, and collecting (or on-the-go transport) operations in one pass.

Product Structural Features

Equipped with a domestically renowned six-cylinder four-stroke diesel engine, this machine delivers powerful performance, energy efficiency, low fuel consumption, and advanced technical specifications. The chassis features a dual-beam integral bridge design combined with an advanced mechanical three-barrier + hydrostatic pressure continuously variable transmission drive system, ensuring reliability, low center of gravity, stability, and high safety factors. The nylon elastic tooth picking mechanism ensures thorough, clean harvesting with minimal damage and low impurity rates for high operational efficiency. Bearings adopt fully sealed dust-proof designs, with standard components made from special steel materials, enabling high-efficiency operation in dusty conditions. The large-volume collection bin design reduces unloading frequency and improves work efficiency. Hydraulic side-tip unloading simplifies operation and facilitates convenient unloading. The rotary disc sieve-type cleaning mechanism ensures thorough cleaning. The on-the-go transport design enables efficient, rapid transportation with strong operational adaptability. This product features ingenious design, simple operation, easy maintenance, high harvesting efficiency, excellent operational performance, and significant market promotion and application value.

Main Technical Parameters


Project

Unit

Technical specifications and parameters

Model name

/

4JZ-3.5(G4) type

Self-propelled pepper harvester

4JZ-2.2 type

Self-propelled pepper harvester

4JZ-3.5A type

Self-propelled pepper harvester

Structural type

/

Self-propelled

Self-propelled

Self-propelled

Matching power

Brand

/

Full stalk

Full stalk

Full stalk

Power

kW

176.5 (240 horsepower)

129 (175 horsepower)

176.5 (240 horsepower)

External dimensions (L×W×H)

9700×4000×5400

8890×3000×3550

10000×4200×4100

Structural mass

9900

8860

14800

Working width

mm

3520

2200

3520

Harvester structure type

/

Roller comb elastic tooth type

Roller comb nylon elastic tooth type

Roller comb nylon elastic tooth type

Pepper elevator structure type

/

Belt conveyor type

Belt conveyor type

Belt conveyor type

Variable speed type

/

Manual shift + hydraulic stepless speed change

Manual shift + hydraulic stepless speed change

Manual shift + hydraulic stepless speed change

Pepper unloading method

/

Hydraulic side tipping type / vehicle-mounted conveyor type

Hydraulic side tipping type / vehicle-mounted conveyor type

Hydraulic side tipping type / vehicle-mounted conveyor type




Main Technical Parameters

sports eventunit (of measure)Technical specification parameters
Model Specification/4LGZ-302(G4)型
Structure type/self-propelled (type)
motive forcebranding/潍柴
power (output)kW177 (240 hp)
Overall dimensions (L×W×H)mm9260×3200×3650
structural qualitykg11160
Harvesting table widthmm3020
Pick-up mechanism type/Zagua style (cookery)
Pick-up mechanism widthmm2510
Threshing drum type/Double drum + longitudinal axial flow
Driving method/four wheel drive
Operating hourly productivity (pure work)hm2/h0.35~0.70
