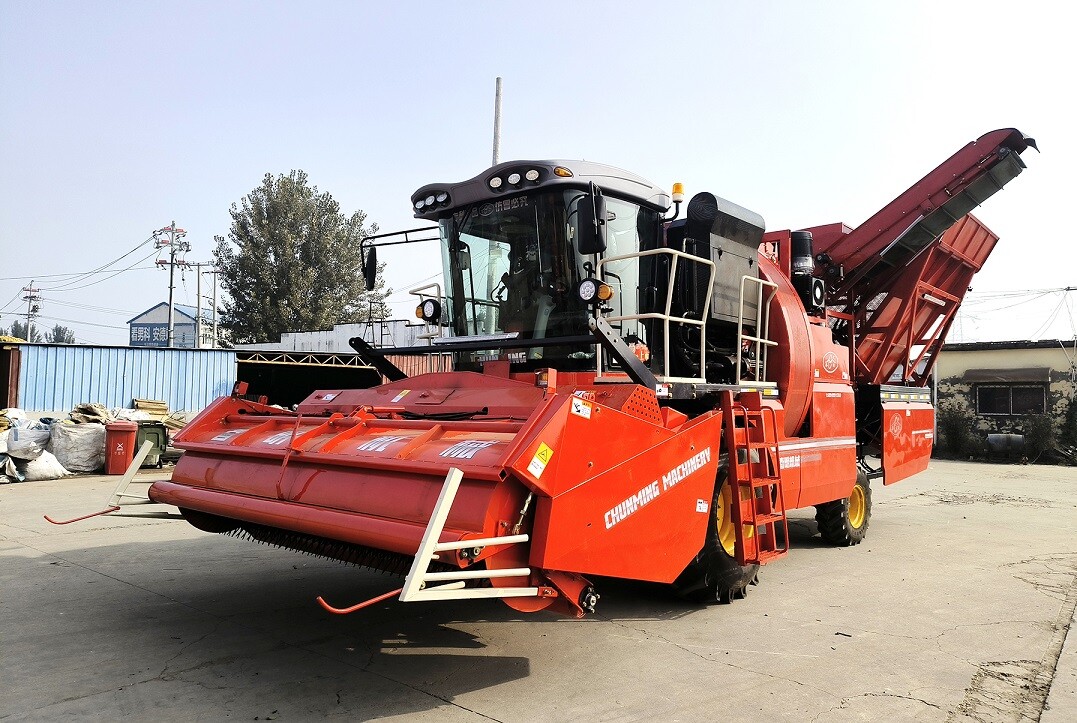

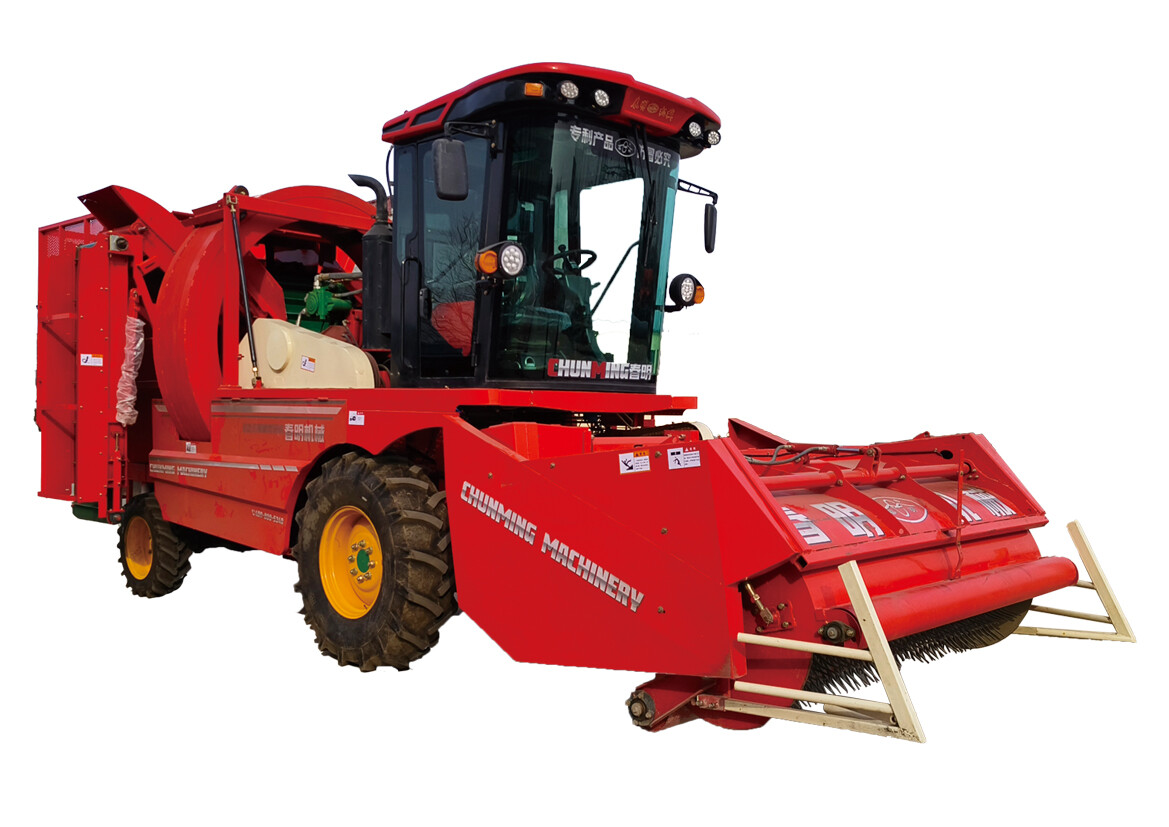

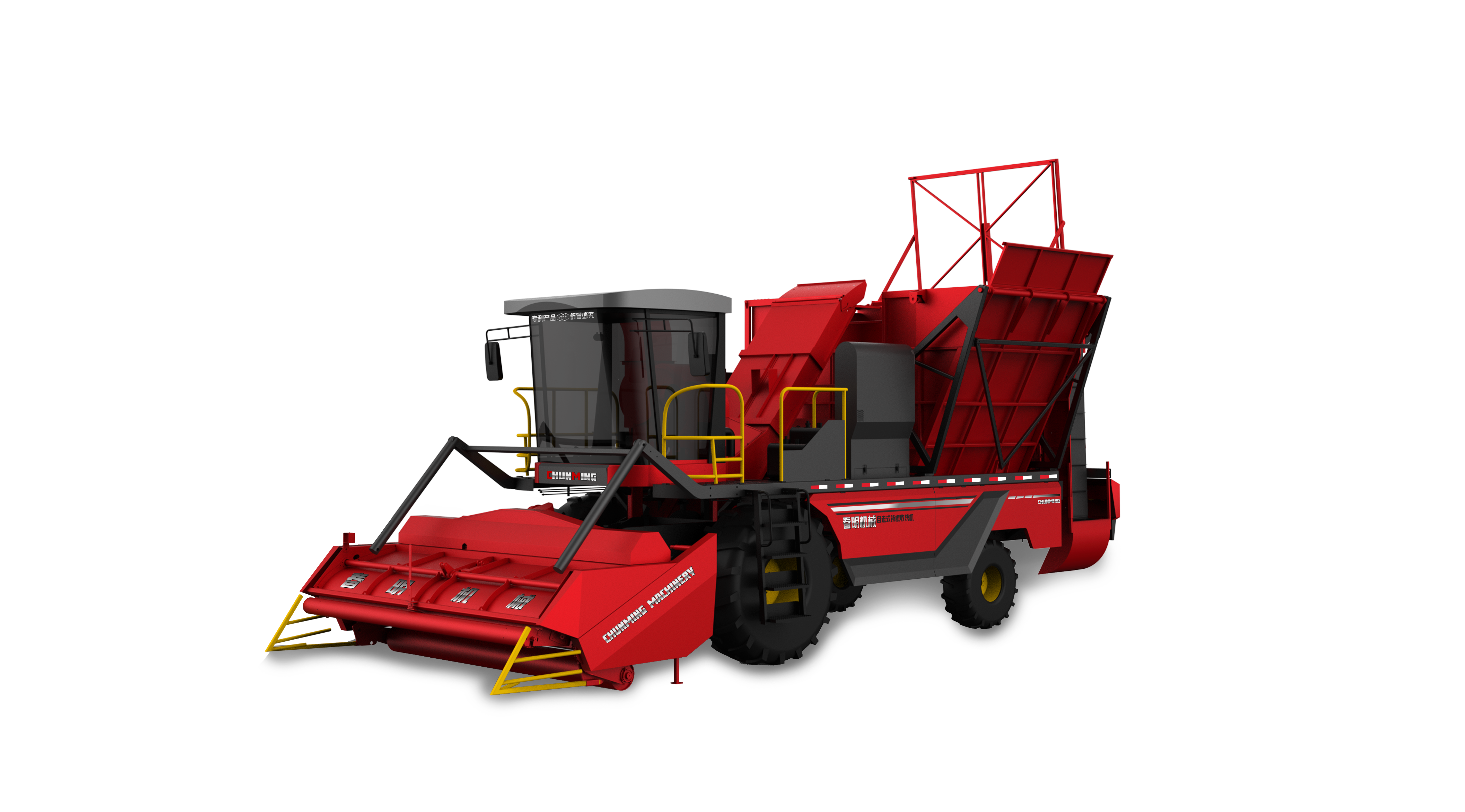

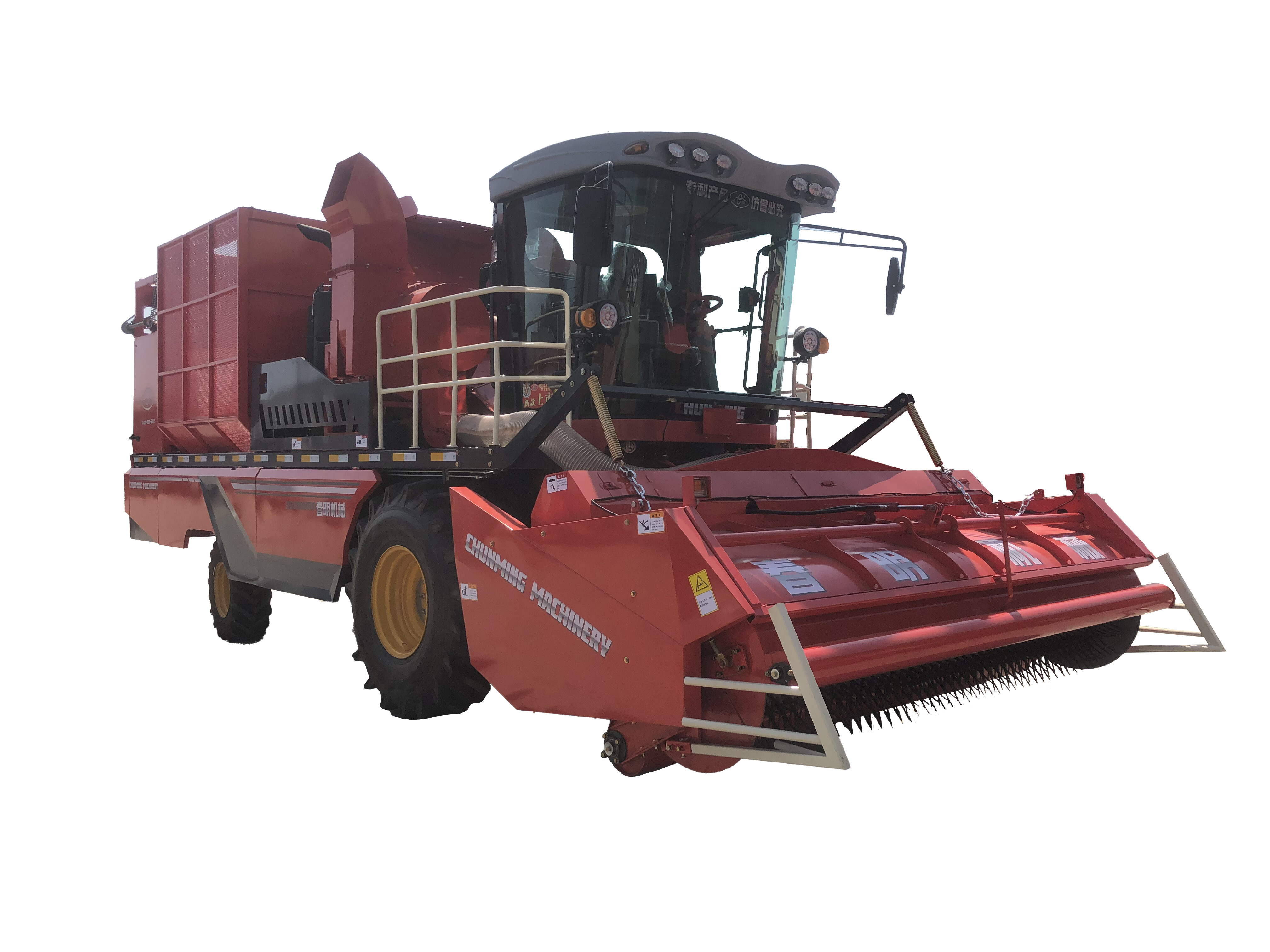

Self-propelled pepper harvester
Chunming brand pepper harvester is a new type of agricultural machinery product independently developed on the basis of absorbing advanced technology of pepper harvester at home and abroad, after years of trial production and improved design. This product is mainly suitable for mechanized harvesting of peppers (especially pigmented peppers other than fresh peppers and iron plate peppers ), and can complete the harvesting operations of peppers such as picking, conveying, cleaning, collecting (or transporting with vehicles) at one time.
Product structure characteristics description
The machine is equipped with a famous domestic six-cylinder National IV diesel engine, which is powerful, energy-saving and environmentally friendly, with low fuel consumption and advanced performance indicators; the chassis walking adopts a double-beam integral bridge frame design, combined with high-quality and advanced mechanical 3-speed + hydrostatic continuously variable transmission drive axle box, which is reliable in quality, low in center of gravity, good in stability and high in safety factor; the nylon spring-tooth picking mechanism is adopted, which can pick cleanly and thoroughly, with low breakage rate, low impurity rate and high operating efficiency; the bearing adopts a fully sealed dustproof design, and the standard parts are made of special steel grades, so that the machine can adapt to efficient operation under dusty working conditions; the large-volume collection box design can reduce the number of unloading and improve work efficiency; the hydraulic side-turning unloading is simple to operate and convenient to unload; the disc rotary screen cleaning mechanism is clean and thorough; the vehicle conveying structure design is efficient and fast in vehicle conveying, and has strong operating adaptability. This product is ingeniously conceived , simple to operate , convenient to repair and maintain, high in harvesting efficiency, good in operating effect, and has a good market promotion and application value.
Main technical parameters
