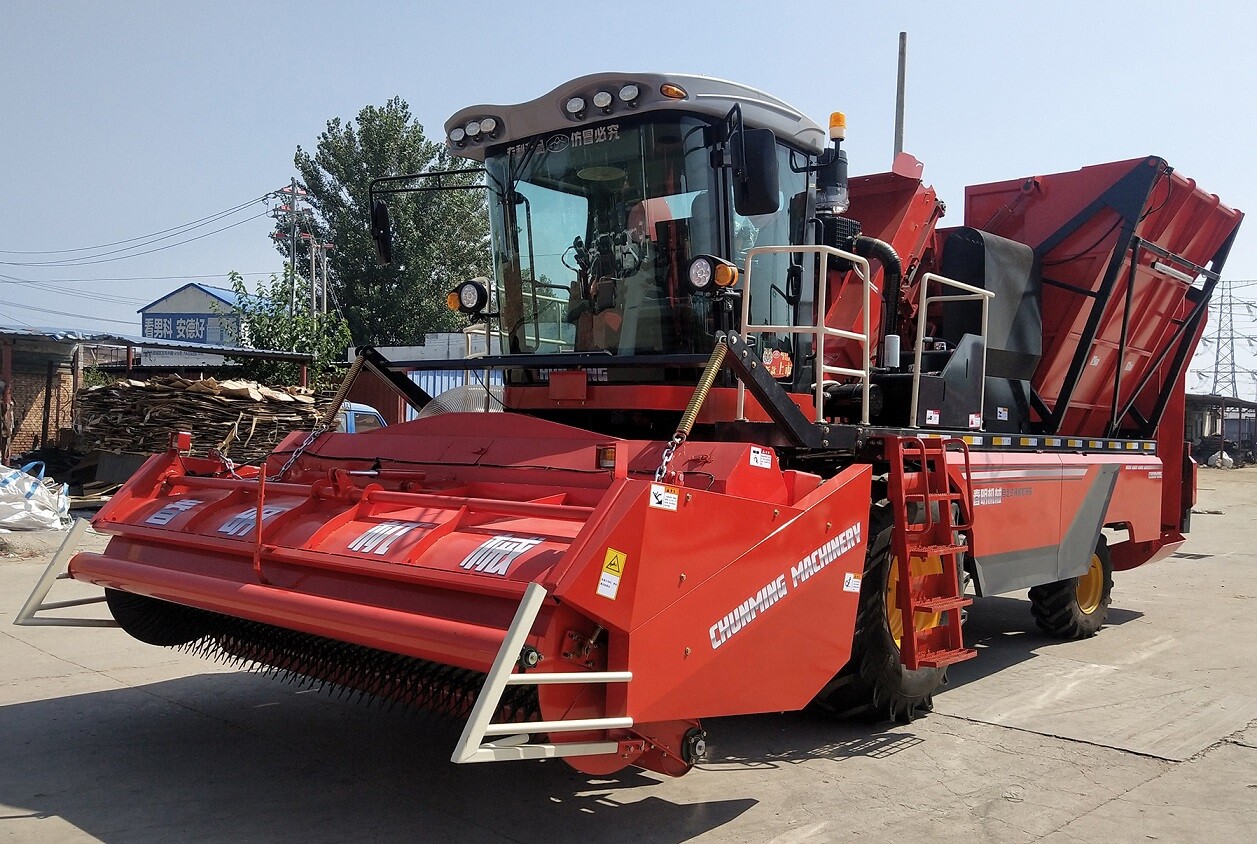

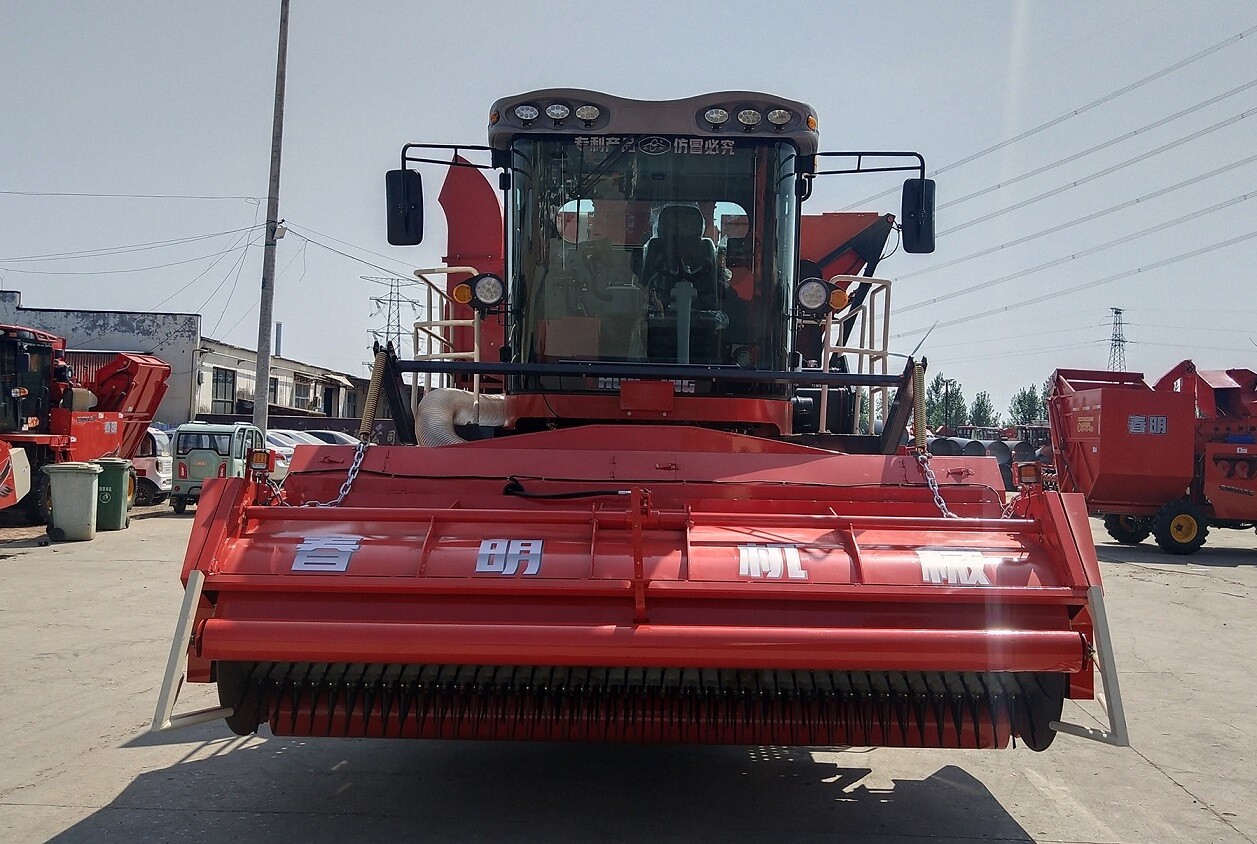

4JZ-4.2(G4) Self-propelled Pepper Harvester
Update time:2025-02-26

Product Introduction
Technical Parameters

Self-propelled Chili Harvester


ChunmingSeriesChili Harvester isa new agricultural machinery product independently developed after years of trial production and design improvements, based on absorbing advanced chili harvesting technologies from domestic and international markets.

This product is mainly suitable for mechanized harvesting of chili peppers (especially pigment-rich chili peppers other than thread peppers and iron plate peppers), capable of completing harvesting operations such as picking, conveying, cleaning, and collecting (or on-the-go transportation) in one go.

Product Structural Features Description:

Equipped with a domestically renowned six-cylinder four-stroke diesel engine, this machine boasts strong power, energy efficiency, low fuel consumption, and advanced performance indicators. The chassis adopts a dual-beam integral bridge design combined with premium3-speed + hydrostatic stepless transmission drive axle, ensuring reliable quality, low center of gravity, excellent stability, and high safety factor. The Nylon spring-tooth picking mechanism ensures thorough and clean picking with minimal damage and low impurity content, delivering high operational efficiency. Bearings feature fully sealed dust-proof designs, and standard components use special steel materials, enabling the machine to operate in harsh environments. The large-volume collection bin design reduces unloading frequency and improves work efficiency. Hydraulic side-tipping unloading is simple to operate and convenient for discharge. The on-the-go transport structure ensures efficient and fast transportation with strong operational adaptability.This product features ingenious design,simple operation,easy maintenance, high harvesting efficiency, excellent operational performance,andgreatmarketpromotionapplicationvalue.


Main Technical Parameters


sports eventunit (of measure)Technical specification parameters
Model Name/4JZ-3.5(G4) Self-propelled Pepper Harvester4JZ-4.2(G4) Self-propelled Chili Harvester
Structure type/self-propelled (type)self-propelled (type)
motive forcebranding/Quanchai (Chinese company)Quanchai (Chinese company)
power (output)kW176.5 (240 hp)176.5 (240 hp)
Overall dimensions (L×W×H)mm9900×3950×37509900×4550×3750
structural qualitykg960010600
Working widthmm35004200
Pepper picking mechanism type/roller-combedroller-combed
Pepper Lifter Structure Type/conveyor belt typeconveyor belt type
Transmission mode/Mechanical 3-speed + CVTMechanical 3-speed + CVT
wholesale system/Hydraulic side-turning type/conveyor with vehicleHydraulic side-turning type/conveyor with vehicle





Main Technical Parameters

sports eventunit (of measure)Technical specification parameters
Model Specification/4LGZ-302(G4)型
Structure type/self-propelled (type)
motive forcebranding/潍柴
power (output)kW177 (240 hp)
Overall dimensions (L×W×H)mm9260×3200×3650
structural qualitykg11160
Harvesting table widthmm3020
Pick-up mechanism type/Zagua style (cookery)
Pick-up mechanism widthmm2510
Threshing drum type/Double drum + longitudinal axial flow
Driving method/four wheel drive
Operating hourly productivity (pure work)hm2/h0.35~0.70
